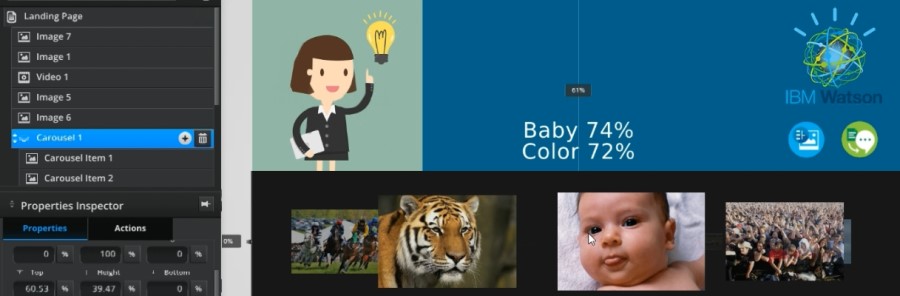

This is a demo of using the IBM Watson image recognition service along with the IBM Watson text to speech service.
When you pick a photo it will classify it and read out the two top matching ‘labels’.
In this demo we use the demo images already on the Watson servers, but it’s possible to have your own corpus of images and build your own special purpose image recognition system on top of Watson.
The code posts the URL of the image to the Watson visual recognition system and then when the result is returned it passes the URL of the text to speech service with the text URL encoded to the media player component which will playback the wav file which is generated.
gw_text = 0
gw_video = 0
register("watson_image","Watson Image","string:image url,component:text:text,component:video:video")
function watson_image (img,ctext,cvideo)
if img==nil then
--do nothing
else
gw_text = ctext
gw_video = cvideo
http_post("http://visual-recognition-demo.mybluemix.net/",
"classifier=0&url="..encode(img,"url").."&text=&service_request=&service_response=",
"","watson_success","")
end
end
function watson_success(data)
local result = JSON_:decode(data)
--work out the first two names and percentages
--remove underscores or they will be pronounced and trim percentages to the two primary digits
local name1 = string.gsub(result.images[1].labels[1].label_name,"_"," ")
local perc1 = string.sub(tostring(tonumber(result.images[1].labels[1].label_score) * 100),1,2).."%"
local name2 = string.gsub(result.images[1].labels[2].label_name,"_"," ")
local perc2 = string.sub(tostring(tonumber(result.images[1].labels[2].label_score) * 100),1,2).."%"
--set the text box
local recog = name1 .. " " .. perc1 .. "\n" .. name2 .. " " .. perc2
set_property(gw_text,"text",recog)
--convert the text to speech and playback
local url = "http://text-to-speech-demo.mybluemix.net/synthesize?text="..
encode(recog,"url") .."&voice=VoiceEnUsLisa&accept=audio/wav"
call_action("play_video",get_component_uuid(gw_video),url)
end
